Specifications

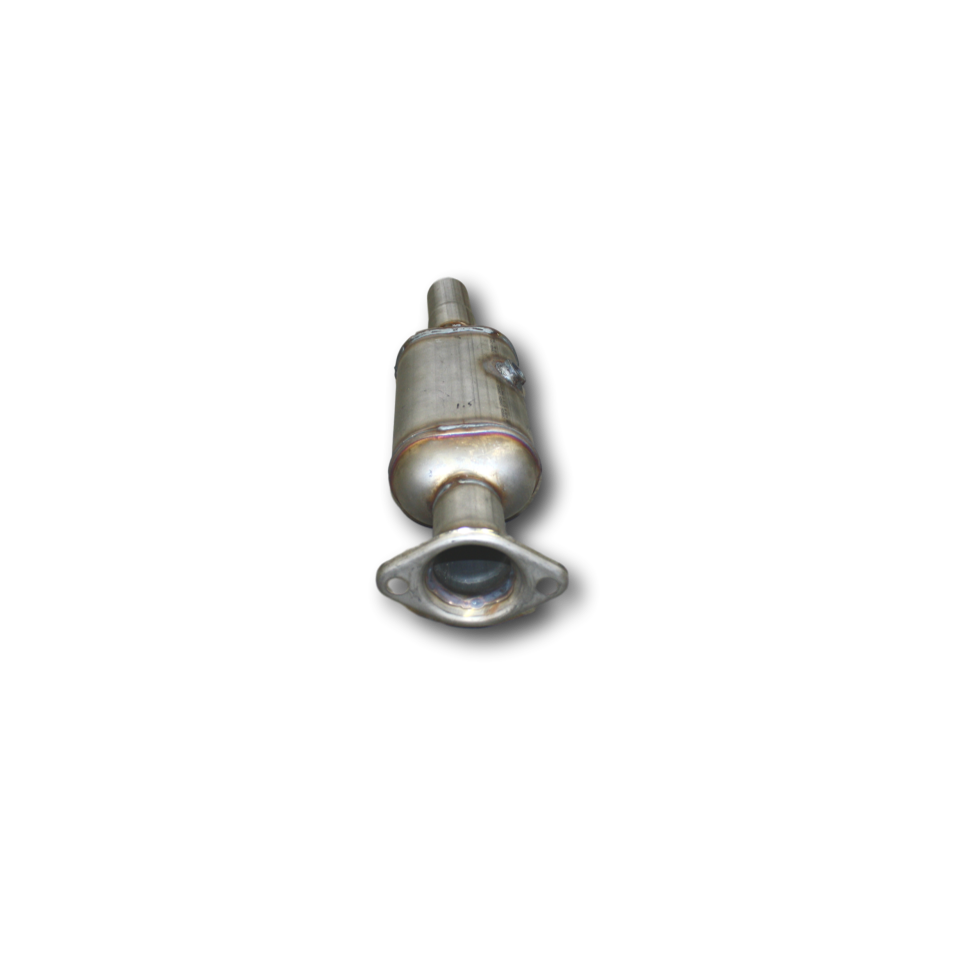

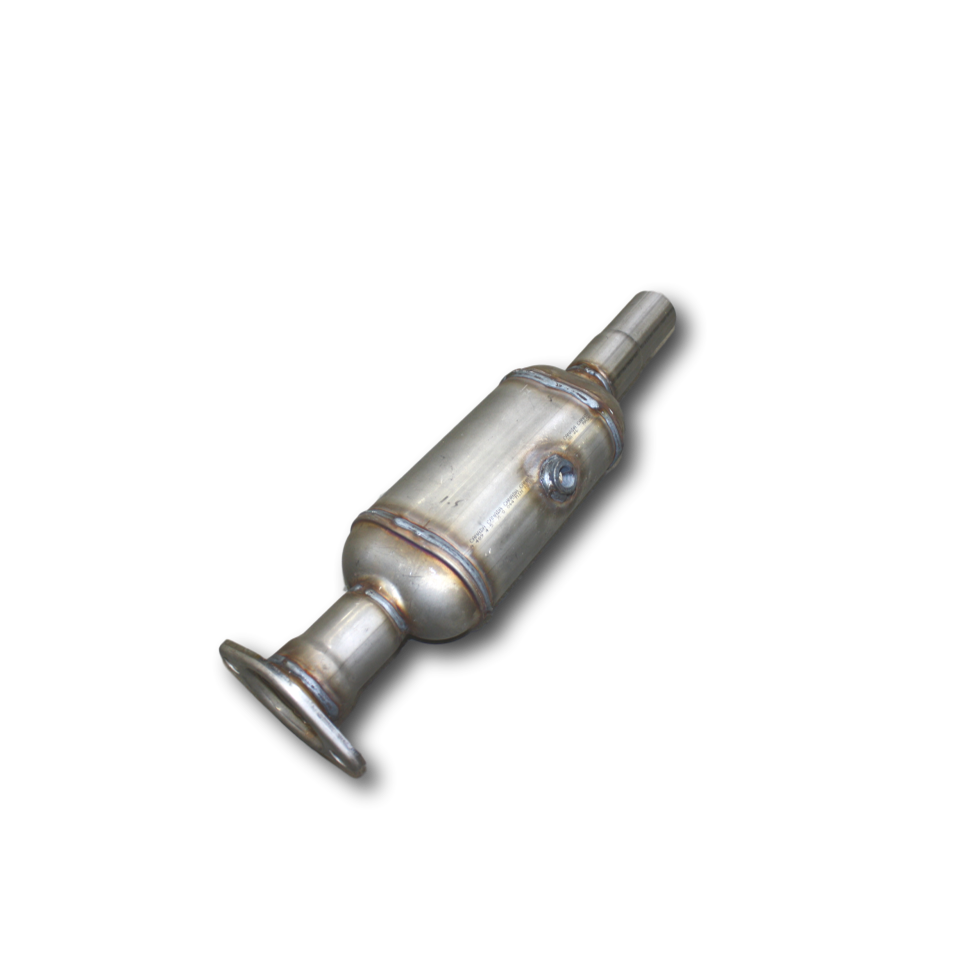

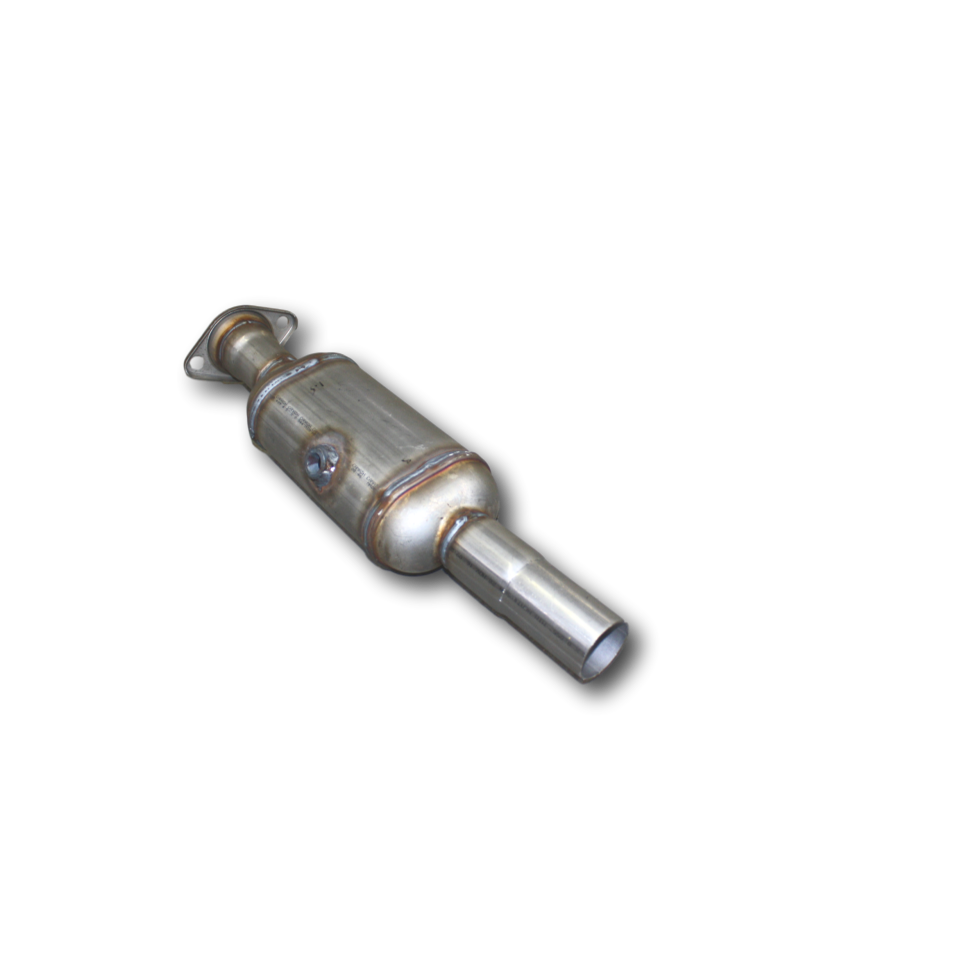

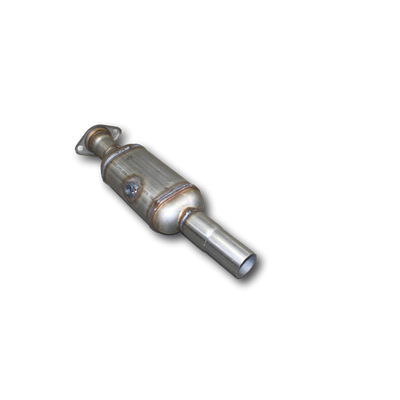

Ford Escape Catalytic Converter
Fits all Escape models from 2009 through to 2012 with 2.5L 4 cylinder. Direct bolt-on, but must clamp to existing muffler assembly, welding may be required. Two bolt inlet flange, pipe outlet has provision to mount factory O2 sensor. Includes gasket, spring bolt kit and outlet exhaust clamp
Fitment | Direct Fit, Clamp or Weld |
Inlet Count | 1 |
Inlet Connection Type | 2 Bolt Welded |
Outlet Count | 1 |
Outlet Diameter 1 | 2.25" |
Outlet Diameter Designation | OD |
Outlet Connection Type | Pipe |
Converter Body Material | Stainless Steel |
Body Shape | Round |
Substrate Material | Ceramic |
Oxygen Sensor Ports | 1 |
