Specifications

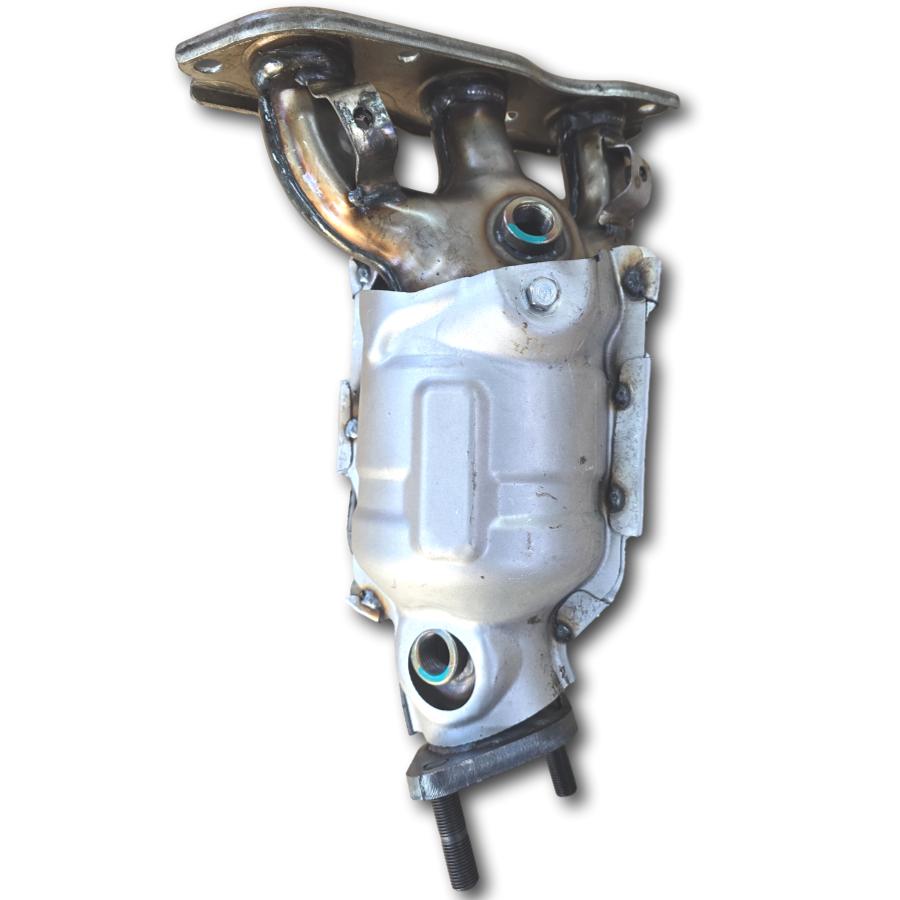

FIREWALL SIDE , fits all Outlander FWD and AWD / 4WD models from 2015 through to 2020. Direct bolt-on, no cutting or welding required. Manifold inlet flange, 2 bolt outlet flange. Bolts between cylinder head and flex pipe at side close to the FIREWALL or BANK 1 has provision to mount both factory O2 sensors. OEM GRADE is nearly IDENTICAL to the original part
| Fitment | Direct Fit, Firewall side , BANK 1 |
| Inlet Count | 1 |
| Inlet Connection Type | cylinder head connection |
| Outlet Count | 1 |
| Outlet Diameter 1 | 2" |
| Outlet Diameter Designation | flange |
| Outlet Connection Type | 2 bolt flange |
| Converter Body Material | Stainless Steel |
| Body Shape | Round |
| Substrate Material | Ceramic |
| Oxygen sensor ports | 2 |
